3208
Double Row Angular Contact Bearing
Angular Contact Ball Bearings follow a precision-based design to thrive in a variety of industrial applications. These bearings are the first choice for tasks requiring high-speed rotation, axial and radial load handling, and above all exceptional precision.
Overview
Technical Specification
Download PDF
Overview
| Dimensions | |
|---|---|
| Bore Diameter | 40 mm |
| Outside Diameter | 80 mm |
| Width | 30.2 mm |
| Performance | ||
|---|---|---|
| Fatigue Load Limit | 1.84 KN | |
| Dynamic Load Rating | 44.9 KN | |
| Static Load Rating | 33.5 KN |
Technical Specification

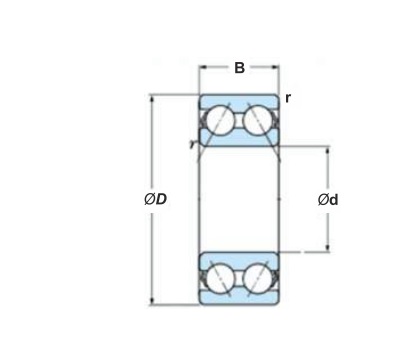

| Boundary Dimensions | ||
|---|---|---|
| d | 40 mm | Bore Diameter |
| D | 80 mm | Outside Diameter |
| B | 30.2 mm | Width (Outer Ring) |
| rsmin | 1.1 mm | Chamfer on Inner Ring |
| Dynamic Load Rating | ||
|---|---|---|
| Cr (KN) | 44.9 | Dynamic |
| Cor (KN) | 33.5 | Static |
| Cr (Kgf) | 4578 | Dynamic |
| Cor (Kgf) | 3416 | Static |
Download PDF
| File | Actions |
|---|---|
| Angular Contact Ball Bearings |
Features:-
- Angular Contact Design: This helps handle radial and axial loads simultaneously for superior load-carrying capacity.
- Precision Engineering: Precision ensures minimal friction, reduced wear, and extended service life.
- High-Speed Performance: Low temperature peaks and reduced friction is ideal for high-speed applications which require reliable & consistently performing bearings.
- Versatility: It has a wide array of configurations making it highly customizable for specific applications.
- Durability: All the above are directly routed towards reducing the need for replacement, enhancing equipment efficiency, and ensuring energy savings.
- Reduced Maintenance Costs: The durability of these bearings results in minimized downtime and maintenance expenses.
Applications:
- Automotive
- Aerospace
- Medical equipment
- Robotics
- Industrial Gearboxes
- Machine Tools in Mills
- Wind Turbines
Why Choose Us:
- Uncompromising quality while ensuring consistent quality and reliability.
- Extensive experience of understanding customers’ needs and providing expert guidance.
- Customer support offering technical assistance, custom solutions, and prompt responses to inquiries.
- Competitive Pricing for flexible cost-effective solutions that deliver superior performance.
- Wide network ensuring high-quality tapered roller bearings are accessible across the world.
